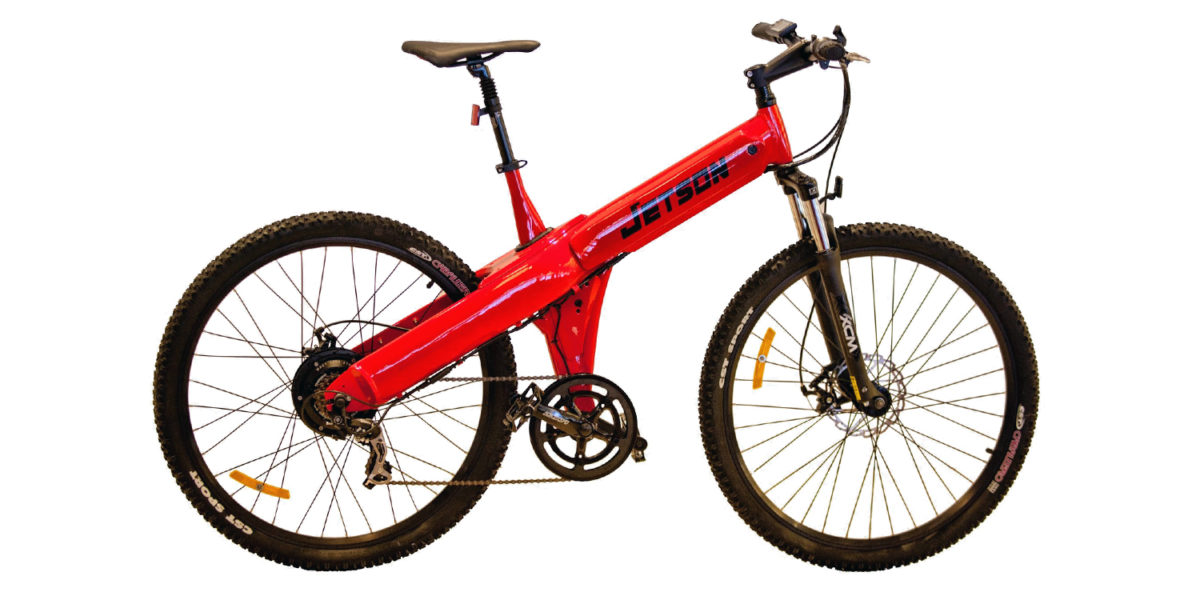

Jetson Electric Mountain Bike
Electronic Parts
ENGINE'S TYPE:
- Rear rack rail
- Learn more about Ebike engines
- ENGINE NOMINAL CAPACITY:
- 500W
- BATTERY VOLTAGE:
- 48 volts
- ACCUMULATOR OPERATION TIME:
- 17 ah
- OPERATING TIME FROM BATTERY:
- 816 W
- CHEMISTRY OF BATTERY:
- Lithium-ion
- CHARGE TIME:
- 5 o'clock
- ORIENTATION MINIMUM RANGE:
- 25 miles (40 km)
- CALCULATED MAXIMUM RANGE:
- 40 miles (64 km)

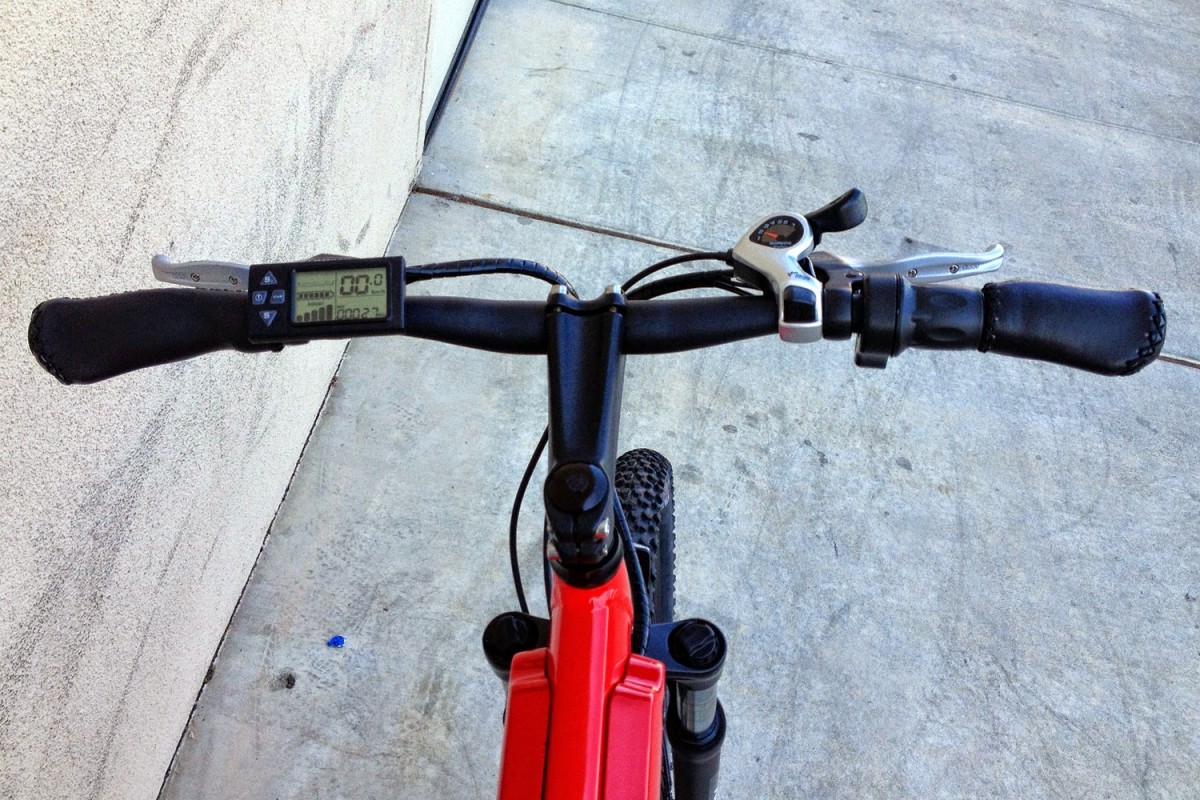

- DISPLAY TYPE:
- Monochrome LCD display on the left panel
- INDICATIONS:
- Speedometer, Odometer, Battery Meter, Level of Care (1-5)
- DRIVE MODE:
- Pedal cadence assistant, Twist Throttle
- MAXIMUM SPEED:
- 20 mph (32 km / h)
Bicycle parts
TOTAL WEIGHT:
- 65 pounds (29.48 kg)
- BATTERY WEIGHT:
- 10 pounds (4.53 kg)
- WEIGHT OF THE ENGINE:
- 20 pounds (9.07 kg)
- MATERIAL FRAMEWORK:
- Aluminium alloy
- TYPES OF STAFF:
- Mid-Step
- COLOR FRAME:
- Black, Red, White
- CARCASS DETAILS:
- SR Suntour XCM Suspension
- TRANSMISSION DETAILS:
- 7 Speed 1x7 Shimano Tourney TX
- SHIFTER DETAILS:
- Shimano SIS Index Shifter in the right pane
- BRIDGES:
- Lasko
- PEDALS:
- Black Wellgo Aluminum Alloy Platform
- STEERING:
- Apartment
- BRAKE DETAILS:
- Mechanical disk with a rotor 180 mm in front and 160 mm Rotor on the rear panel, levers of electric motor control with engine cut-off
- Tsangi:
- Black leather, ergonomic
- SEAT POST:
- Suspension
- BRAND TIRES:
- CST Caballero, 29 "x 2.26"
- DIMENSIONS OF WHEELS:
- 29 inches (73.66 cm)
- PIPE DETAILS:
- Schrader Valve
- AUXILIARY EQUIPMENT:
- Guide with side wall, guide for plastic chains
- OTHER:
- Replaceable removable battery, six magnetic sensors Pedelec
Pros:
- A few nice ergonomic improvements that smooth the course, including leather ergo grips, a seat and a base suspension fork
- One of the most affordable electric bikes with large 29-inch wheels offers a higher angle of attack for rolling obstacles, improved rolling torque, less manoeuvrable than a smaller 26 "or 27.5"
- Variants with several driving modes, including a rotatable throttle and a touch pedal, which increases the range and reduces the load on the battery when lifting
- The motor shut-off switch is integrated into both Tektro brake levers and can be very useful for deactivating the system when driving off-road, taking into account the less sensitive pedal assistance setting
- The midrange battery pack extends over the frame as compared to the rear rack, it is detachable for easy charging or for weight reduction when transporting a bicycle
